Custom setup

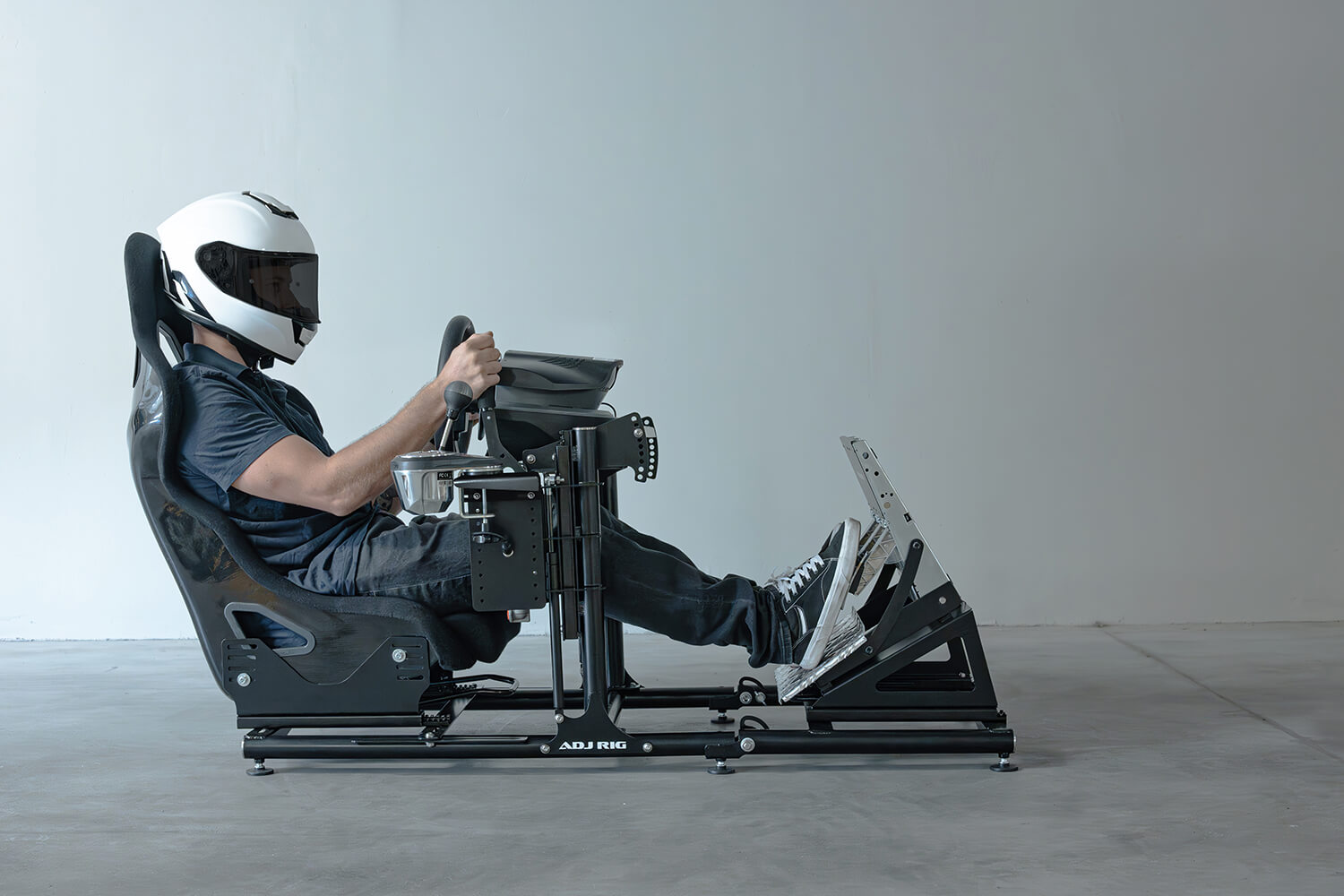

ADJ SIM RIG

SIM RIG setup does not include steering wheel, pedal box, shifter, handbreak and seat.
The basic version does not include a bucket seat mounting with rails, but it is possible to add it to your order in the basket.

Steering Wheel Adjustment

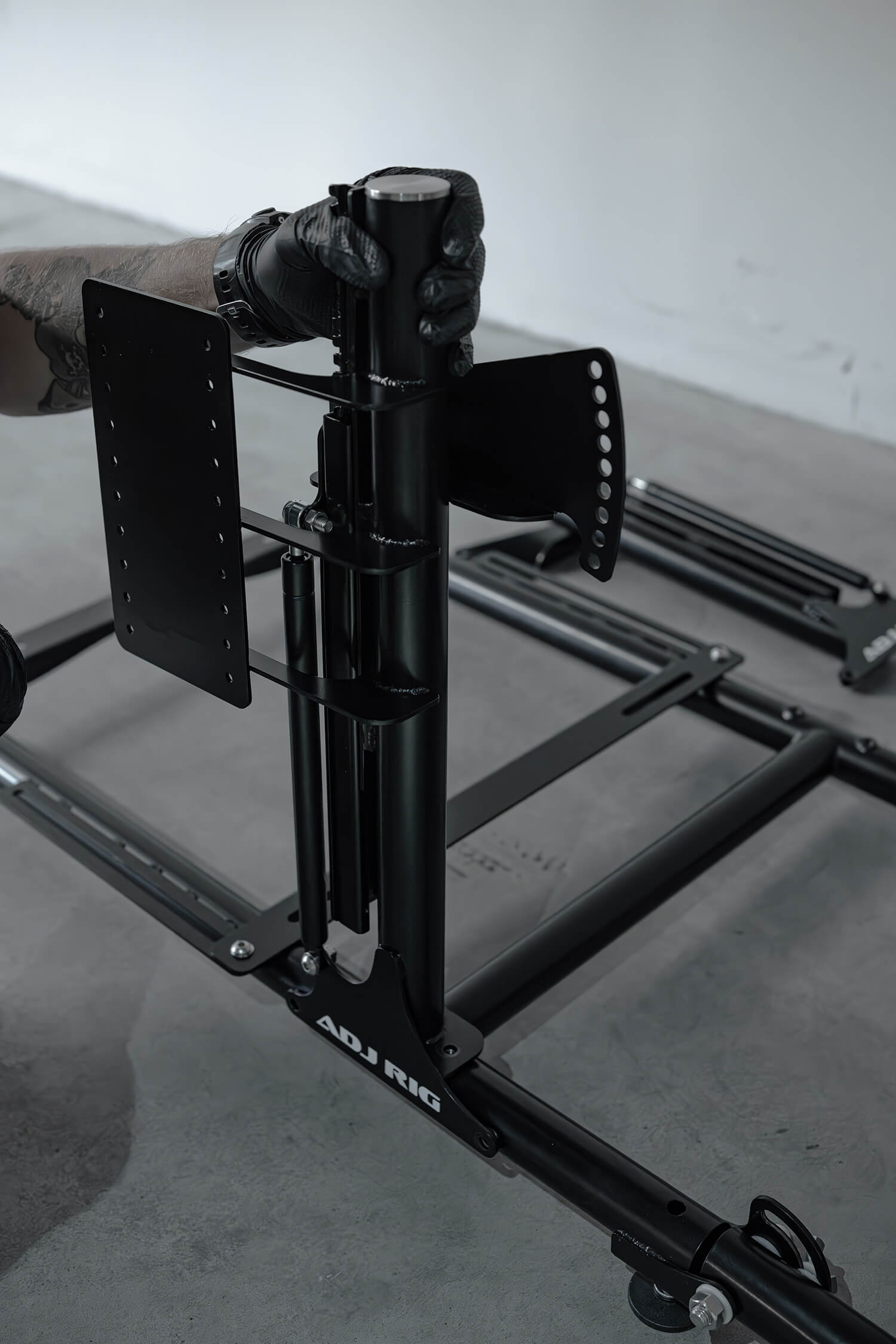

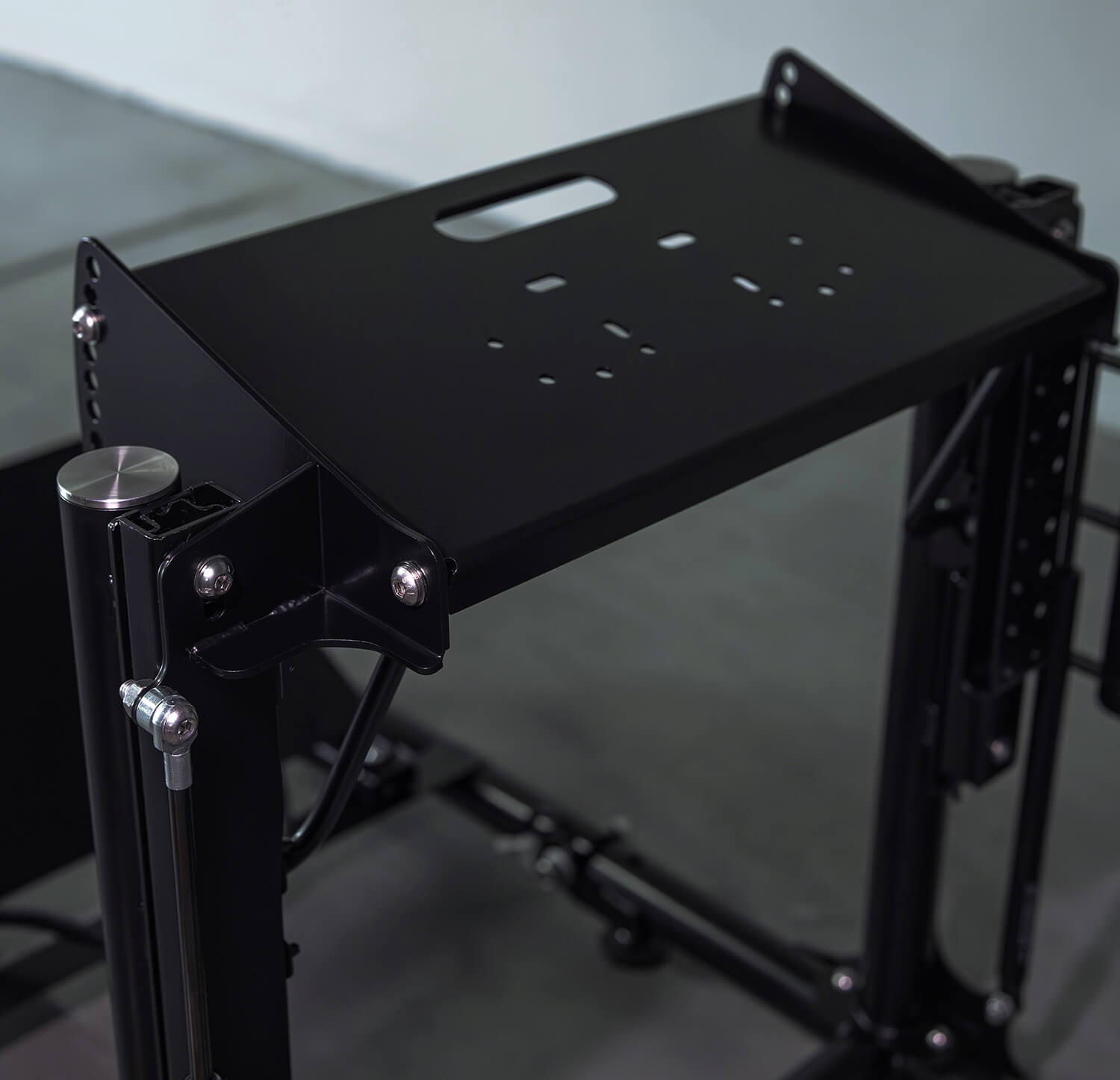

The rapid adjustment of the steering column height, achieved through vertical rails supported by gas springs, allows for smooth and easy up-and-down movement. Additionally, the steering wheel angle adjustment enables precise tilting, ensuring ergonomics and comfort.

Pedal Box Adjustment

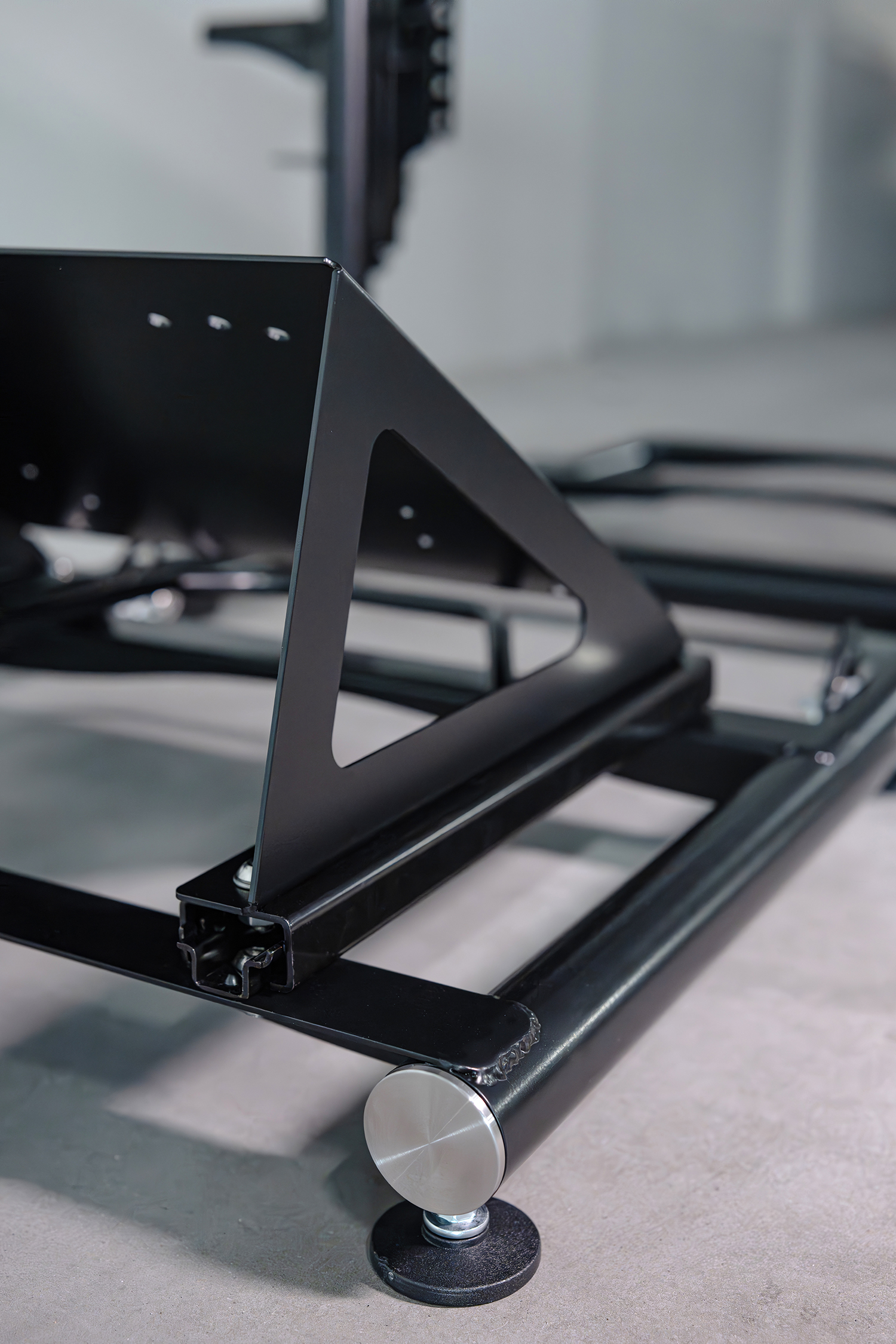

The rapid adjustment of the pedal box base, achieved through horizontal rails, allows for easy and precise forward and backward distance adjustments. This ensures optimal positioning for every driver and comfort during intense racing sessions.

Quick Folding

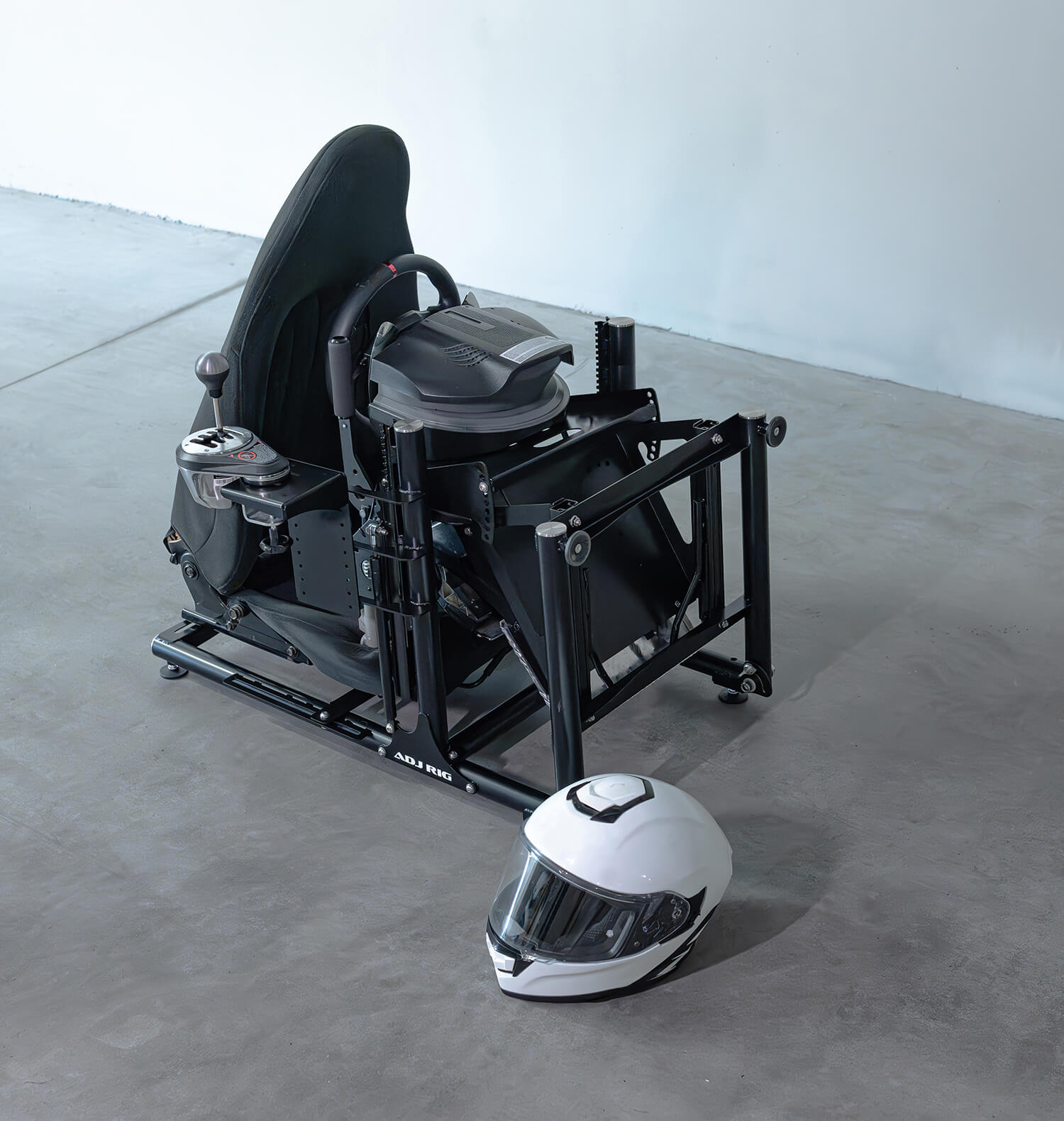

The quick folding of the Adj Rig sim racing setup is made possible by its two-part frame. The pedal box frame folds up to 90 degrees, tucking under the steering wheel to form a compact shape. It makes the setup easy to store and transport.

Handbrake Adjustment

The hydraulic handbrake is permanently mounted on slots that allow for positional adjustment. Thanks to its installation on the adjustable steering column, there is no need to adjust it each time to match the steering wheel height. As a result, the handbrake is always in a comfortable position relative to the steering wheel.

Seat Mounting

The seat is mounted to the sim racing setup at four points on a flat surface with two-axis adjustment, allowing compatibility with most factory and aftermarket seats. The mounting hole spacing is 290 - 460 mm across and 200 - 480 mm lengthwise. Universal mounts and adjustable rails for bucket seats can be purchased additionally. (Mounting width of bucket seat 340-510mm).

Shifter Mounting

The shifter is permanently mounted using holes positioned at various heights on a vertical panel or on a horizontal shelf that is attached to the panel, depending on the type of shifter. The adjustment allows for an ergonomic position and optimal shifter height fitted to the driver's individual needs.

Adjustment Ranges

Advantages of an adj rig

0 mm -15°

100 mm 0°

200 mm +15°

Steering wheel

PEDAL BOX

SHIFTER

Handbrake

Enjoy Racing with Adj Sim Rig

Origin of Adj Rig

The ADJ RIG sim racing setup was born from a passion for racing and drifting, combined with experience in CAD modeling and a desire to share the love of simracing with friends. Quick adjustments allow for perfect customization of the seat, steering wheel, and pedals!

Technology SIM RIG

MATERIALS USED

The simracing rig is carefully crafted from high-quality structural steel and stainless steel fasteners, ensuring strength and durability.

MANUFACTURING PROCESS

The steel components are laser-cut and bent, then welded using the TIG method, guaranteeing durable and aesthetically pleasing welds.

SURFACE FINISH

Powder coating provides an attractive finish and protects the surface from corrosion and external factors.

MINIMALIST DESIGN

The ADJ Rig simracing setup features a minimalist design – clean lines, a modern look, and maximum functionality for ultimate racing comfort.

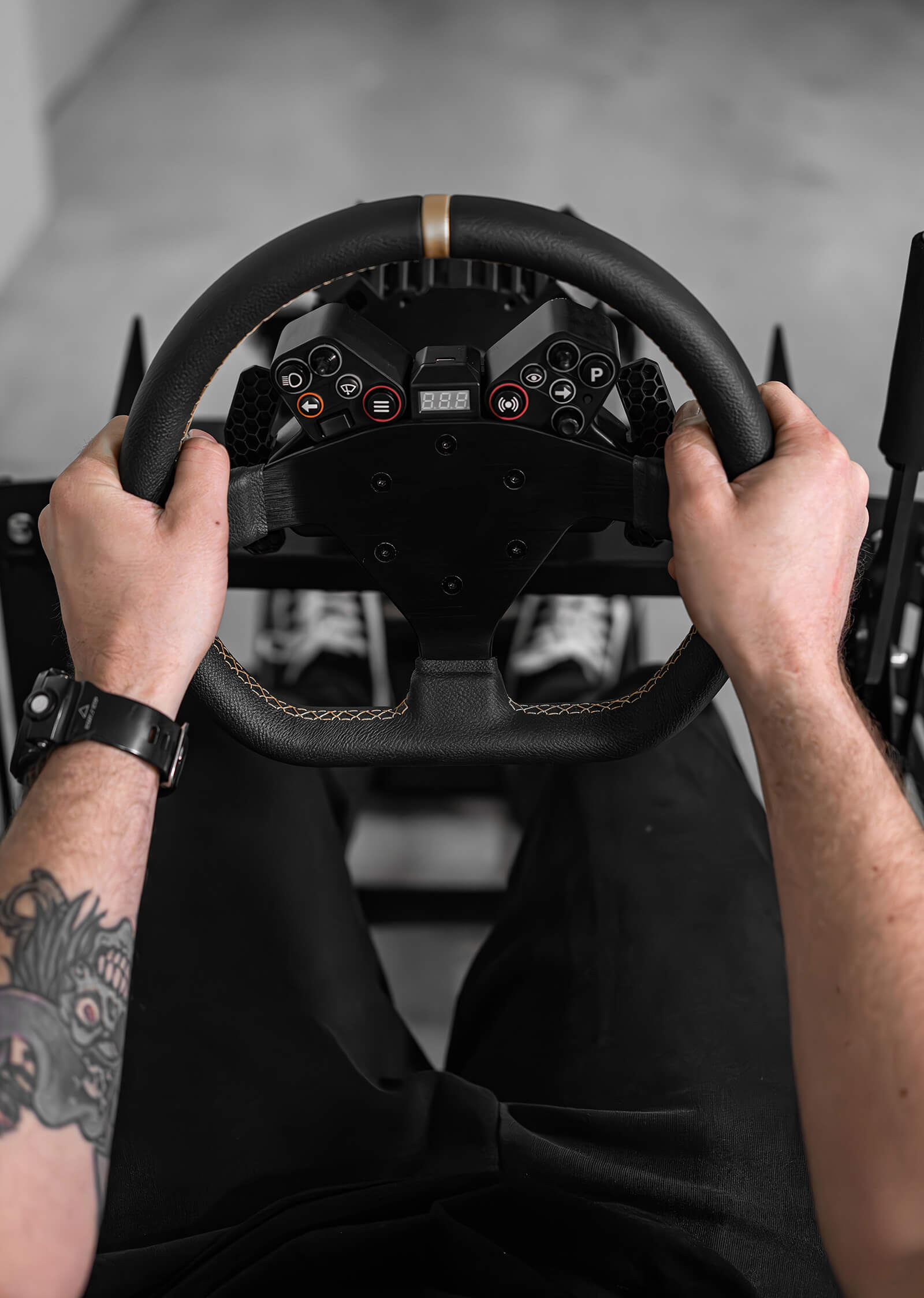

stanowisko_sim_rig_simracing_adj_kierownica

Why is it Worth It?

Fast adjustment

Solid construction

Compatibility

Compact design

The sim racing frame with full adjustability is construction that allows for the customization of steering wheel height, pedal box distance, seat position, shifter, and handbrake to perfectly match the driver’s dimensions and preferences.

Adjustments for the pedal box, steering wheel, and seat are made on rails, enabling quick and precise setting changes. Additionally, the steering wheel height adjustment is assisted by gas springs, which facilitate smooth and easy up-and-down movement.

These adjustment mechanisms allow for rapid and effortless changes, making it easy to adapt the frame for different users. This enables you to enjoy realistic racing experiences both solo and with friends without the need for lengthy parameter adjustments.

Moreover, this type of frame can be quickly folded into compact dimensions, simplifying storage when not in use. As a result, it is an ideal solution for sim racing enthusiasts who value both comfort and functionality.

See How It Looks

The sim racing rig has been designed with maximum versatility in mind, offering various hole patterns for mounting steering wheels and pedal boxes from different manufacturers. Download the assembly and user manual and familiarize yourself with the safety guidelines:

Download the manual

Buy Now

Our goal was to create a solution that not only meets the expectations of passionate drivers but also allows for sharing thrilling moments with loved ones.

Quickly adjust the setup and enjoy the full racing experience with your friends!

The product is made to order.
